Schema documentation for component DocumentInfo

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Model

Properties

Source

Used by

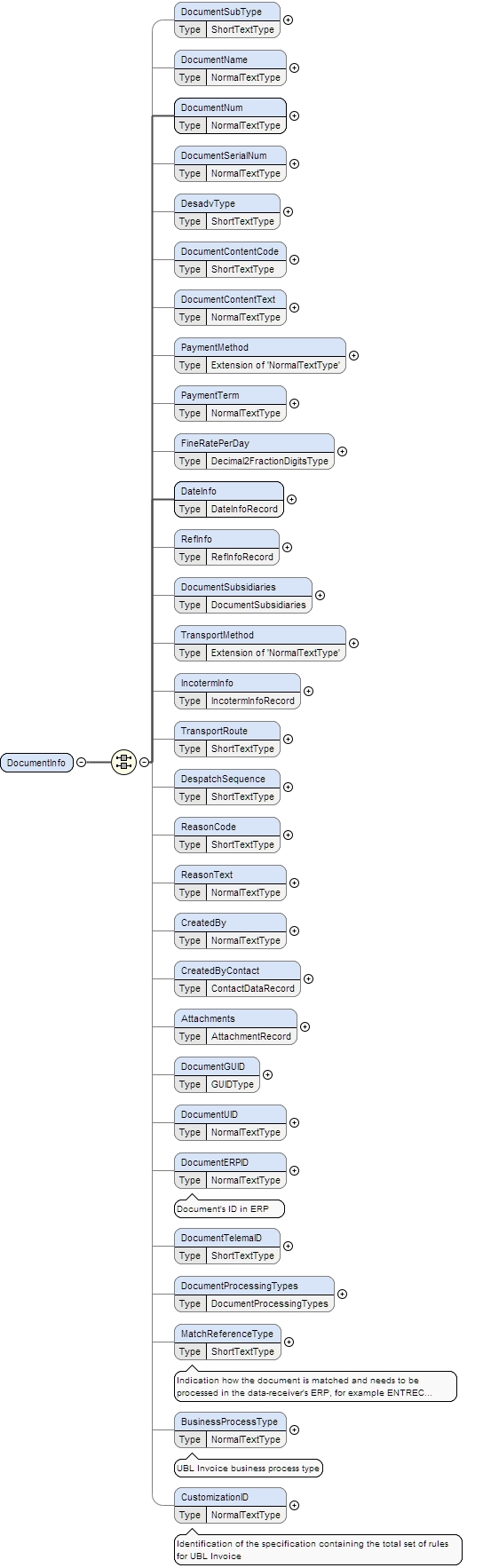

Element DocumentInfo

Namespace

No namespace

Diagram

Properties

content

complex

Used by

Element

Document

Model

ALL(DocumentSubType{0,1} DocumentName{0,1} DocumentNum DocumentSerialNum{0,1} DesadvType{0,1} DocumentContentCode{0,1} DocumentContentText{0,1} PaymentMethod{0,1} PaymentTerm{0,1} FineRatePerDay{0,1} DateInfo RefInfo{0,1} DocumentSubsidiaries{0,1} TransportMethod{0,1} IncotermInfo{0,1} TransportRoute{0,1} DespatchSequence{0,1} ReasonCode{0,1} ReasonText{0,1} CreatedBy{0,1} CreatedByContact{0,1} Attachments{0,1} DocumentGUID{0,1} DocumentUID{0,1} DocumentERPID{0,1} DocumentTelemaID{0,1} DocumentProcessingTypes{0,1} MatchReferenceType{0,1} BusinessProcessType{0,1} CustomizationID{0,1})

Children

Attachments, BusinessProcessType, CreatedBy, CreatedByContact, CustomizationID, DateInfo, DesadvType, DespatchSequence, DocumentContentCode, DocumentContentText, DocumentERPID, DocumentGUID, DocumentName, DocumentNum, DocumentProcessingTypes, DocumentSerialNum, DocumentSubType, DocumentSubsidiaries, DocumentTelemaID, DocumentUID, FineRatePerDay, IncotermInfo, MatchReferenceType, PaymentMethod, PaymentTerm, ReasonCode, ReasonText, RefInfo, TransportMethod, TransportRoute

Instance

<DocumentInfo>
  <DocumentSubType>{0,1}</DocumentSubType>
  <DocumentName>{0,1}</DocumentName>
  <DocumentNum>{1,1}</DocumentNum>
  <DocumentSerialNum>{0,1}</DocumentSerialNum>
  <DesadvType>{0,1}</DesadvType>
  <DocumentContentCode>{0,1}</DocumentContentCode>
  <DocumentContentText>{0,1}</DocumentContentText>
  <PaymentMethod code="">{0,1}</PaymentMethod>
  <PaymentTerm>{0,1}</PaymentTerm>
  <FineRatePerDay>{0,1}</FineRatePerDay>
  <DateInfo>{1,1}</DateInfo>
  <RefInfo>{0,1}</RefInfo>
  <DocumentSubsidiaries>{0,1}</DocumentSubsidiaries>
  <TransportMethod code="">{0,1}</TransportMethod>
  <IncotermInfo>{0,1}</IncotermInfo>
  <TransportRoute>{0,1}</TransportRoute>
  <DespatchSequence>{0,1}</DespatchSequence>
  <ReasonCode>{0,1}</ReasonCode>
  <ReasonText>{0,1}</ReasonText>
  <CreatedBy>{0,1}</CreatedBy>
  <CreatedByContact>{0,1}</CreatedByContact>
  <Attachments>{0,1}</Attachments>
  <DocumentGUID>{0,1}</DocumentGUID>
  <DocumentUID>{0,1}</DocumentUID>
  <DocumentERPID>{0,1}</DocumentERPID>
  <DocumentTelemaID>{0,1}</DocumentTelemaID>
  <DocumentProcessingTypes>{0,1}</DocumentProcessingTypes>
  <MatchReferenceType>{0,1}</MatchReferenceType>
  <BusinessProcessType>{0,1}</BusinessProcessType>
  <CustomizationID>{0,1}</CustomizationID>
</DocumentInfo>

Source

<xs:element name="DocumentInfo">
  <xs:complexType>
    <xs:all>
      <xs:element minOccurs="0" name="DocumentSubType" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DocumentName" type="NormalTextType"/>
      <xs:element name="DocumentNum" type="NormalTextType"/>
      <xs:element minOccurs="0" name="DocumentSerialNum" type="NormalTextType"/>
      <xs:element minOccurs="0" name="DesadvType" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DocumentContentCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DocumentContentText" type="NormalTextType"/>
      <xs:element minOccurs="0" name="PaymentMethod">
        <xs:complexType>
          <xs:simpleContent>
            <xs:extension base="NormalTextType">
              <xs:attribute name="code" type="NormalTextType" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element minOccurs="0" name="PaymentTerm" type="NormalTextType"/>
      <xs:element minOccurs="0" name="FineRatePerDay" type="Decimal2FractionDigitsType"/>
      <xs:element name="DateInfo" type="DateInfoRecord"/>
      <xs:element minOccurs="0" name="RefInfo" type="RefInfoRecord"/>
      <xs:element minOccurs="0" name="DocumentSubsidiaries" type="DocumentSubsidiaries"/>
      <xs:element minOccurs="0" name="TransportMethod">
        <xs:complexType>
          <!-- 3.1.13: ADDED attribute-->
          <xs:simpleContent>
            <xs:extension base="NormalTextType">
              <xs:attribute name="code" type="NormalTextType" use="optional"/>
            </xs:extension>
          </xs:simpleContent>
        </xs:complexType>
      </xs:element>
      <xs:element minOccurs="0" name="IncotermInfo" type="IncotermInfoRecord"/>
      <!-- 3.1.13: ADDED element-->
      <xs:element minOccurs="0" name="TransportRoute" type="ShortTextType"/>
      <xs:element minOccurs="0" name="DespatchSequence" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ReasonCode" type="ShortTextType"/>
      <xs:element minOccurs="0" name="ReasonText" type="NormalTextType"/>
      <!-- 3.1.14: ADDED element-->
      <xs:element minOccurs="0" name="CreatedBy" type="NormalTextType"/>

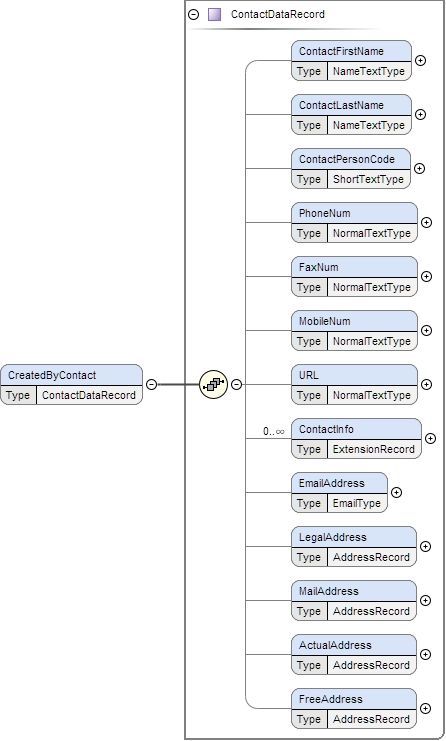

      <xs:element minOccurs="0" name="CreatedByContact" type="ContactDataRecord"/>
      <xs:element minOccurs="0" name="Attachments" type="AttachmentRecord"/>
      <xs:element minOccurs="0" name="DocumentGUID" type="GUIDType"/>
      <xs:element minOccurs="0" name="DocumentUID" type="NormalTextType"/>
      <xs:element minOccurs="0" name="DocumentERPID" type="NormalTextType">
        <xs:annotation>
          <xs:documentation>Document's ID in ERP</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="DocumentTelemaID" type="ShortTextType"/>

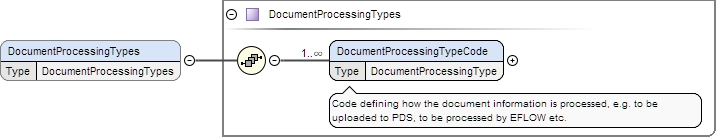

      <xs:element minOccurs="0" name="DocumentProcessingTypes" type="DocumentProcessingTypes"/>

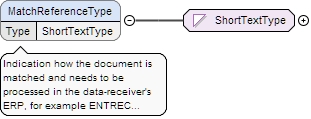

      <xs:element minOccurs="0" name="MatchReferenceType" type="ShortTextType">
        <xs:annotation>
          <xs:documentation>Indication how the document is matched and needs to be processed in the data-receiver's ERP, for example ENTREC document can be matched with order or receipt</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element minOccurs="0" name="BusinessProcessType" type="NormalTextType">
        <xs:annotation>
          <xs:documentation>UBL Invoice business process type</xs:documentation>
        </xs:annotation>
      </xs:element>

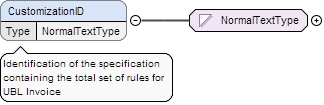

      <xs:element minOccurs="0" name="CustomizationID" type="NormalTextType">
        <xs:annotation>
          <xs:documentation>Identification of the specification containing the total set of rules for UBL Invoice</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:all>
  </xs:complexType>
</xs:element>

Element DocumentInfo / DocumentSubType

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="DocumentSubType" type="ShortTextType"/>

Element DocumentInfo / DocumentName

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="DocumentName" type="NormalTextType"/>

Element DocumentInfo / DocumentNum

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content

simple

Facets

maxLength

100

Source

<xs:element name="DocumentNum" type="NormalTextType"/>

Element DocumentInfo / DocumentSerialNum

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="DocumentSerialNum" type="NormalTextType"/>

Element DocumentInfo / DesadvType

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="DesadvType" type="ShortTextType"/>

Element DocumentInfo / DocumentContentCode

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="DocumentContentCode" type="ShortTextType"/>

Element DocumentInfo / DocumentContentText

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="DocumentContentText" type="NormalTextType"/>

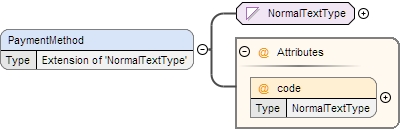

Element DocumentInfo / PaymentMethod

Namespace

No namespace

Diagram

Type

extension of NormalTextType

Type hierarchy

xs:string
- NormalTextType

Properties

content	complex
minOccurs	0

Attributes

QName	Type	Use
code	NormalTextType	optional

Source

<xs:element minOccurs="0" name="PaymentMethod">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="NormalTextType">
        <xs:attribute name="code" type="NormalTextType" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Element DocumentInfo / PaymentTerm

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="PaymentTerm" type="NormalTextType"/>

Element DocumentInfo / FineRatePerDay

Namespace

No namespace

Diagram

Type

Decimal2FractionDigitsType

Properties

content	simple
minOccurs	0

Facets

fractionDigits

Source

<xs:element minOccurs="0" name="FineRatePerDay" type="Decimal2FractionDigitsType"/>

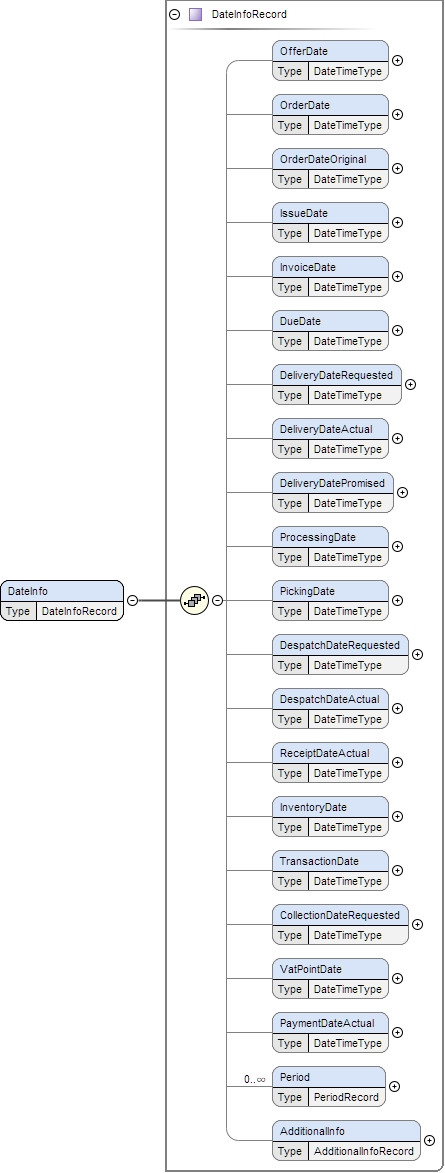

Element DocumentInfo / DateInfo

Namespace

No namespace

Diagram

Type

DateInfoRecord

Properties

content

complex

Model

OfferDate{0,1} , OrderDate{0,1} , OrderDateOriginal{0,1} , IssueDate{0,1} , InvoiceDate{0,1} , DueDate{0,1} , DeliveryDateRequested{0,1} , DeliveryDateActual{0,1} , DeliveryDatePromised{0,1} , ProcessingDate{0,1} , PickingDate{0,1} , DespatchDateRequested{0,1} , DespatchDateActual{0,1} , ReceiptDateActual{0,1} , InventoryDate{0,1} , TransactionDate{0,1} , CollectionDateRequested{0,1} , VatPointDate{0,1} , PaymentDateActual{0,1} , Period* , AdditionalInfo{0,1}

Children

AdditionalInfo, CollectionDateRequested, DeliveryDateActual, DeliveryDatePromised, DeliveryDateRequested, DespatchDateActual, DespatchDateRequested, DueDate, InventoryDate, InvoiceDate, IssueDate, OfferDate, OrderDate, OrderDateOriginal, PaymentDateActual, Period, PickingDate, ProcessingDate, ReceiptDateActual, TransactionDate, VatPointDate

Instance

<DateInfo>
  <OfferDate>{0,1}</OfferDate>
  <OrderDate>{0,1}</OrderDate>
  <OrderDateOriginal>{0,1}</OrderDateOriginal>
  <IssueDate>{0,1}</IssueDate>
  <InvoiceDate>{0,1}</InvoiceDate>
  <DueDate>{0,1}</DueDate>
  <DeliveryDateRequested>{0,1}</DeliveryDateRequested>
  <DeliveryDateActual>{0,1}</DeliveryDateActual>
  <DeliveryDatePromised>{0,1}</DeliveryDatePromised>
  <ProcessingDate>{0,1}</ProcessingDate>
  <PickingDate>{0,1}</PickingDate>
  <DespatchDateRequested>{0,1}</DespatchDateRequested>
  <DespatchDateActual>{0,1}</DespatchDateActual>
  <ReceiptDateActual>{0,1}</ReceiptDateActual>
  <InventoryDate>{0,1}</InventoryDate>
  <TransactionDate>{0,1}</TransactionDate>
  <CollectionDateRequested>{0,1}</CollectionDateRequested>
  <VatPointDate>{0,1}</VatPointDate>
  <PaymentDateActual>{0,1}</PaymentDateActual>
  <Period>{0,unbounded}</Period>
  <AdditionalInfo>{0,1}</AdditionalInfo>
</DateInfo>

Source

<xs:element name="DateInfo" type="DateInfoRecord"/>

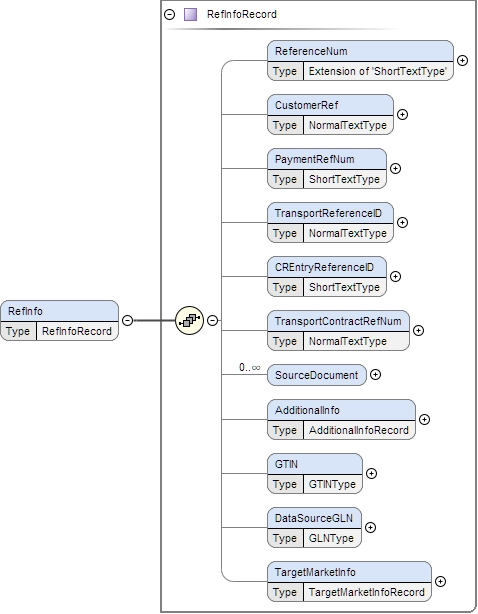

Element DocumentInfo / RefInfo

Namespace

No namespace

Diagram

Type

RefInfoRecord

Properties

content	complex
minOccurs	0

Model

ReferenceNum{0,1} , CustomerRef{0,1} , PaymentRefNum{0,1} , TransportReferenceID{0,1} , CREntryReferenceID{0,1} , TransportContractRefNum{0,1} , SourceDocument* , AdditionalInfo{0,1} , GTIN{0,1} , DataSourceGLN{0,1} , TargetMarketInfo{0,1}

Children

AdditionalInfo, CREntryReferenceID, CustomerRef, DataSourceGLN, GTIN, PaymentRefNum, ReferenceNum, SourceDocument, TargetMarketInfo, TransportContractRefNum, TransportReferenceID

Instance

<RefInfo>
  <ReferenceNum type="">{0,1}</ReferenceNum>
  <CustomerRef>{0,1}</CustomerRef>
  <PaymentRefNum>{0,1}</PaymentRefNum>
  <TransportReferenceID>{0,1}</TransportReferenceID>
  <CREntryReferenceID>{0,1}</CREntryReferenceID>
  <TransportContractRefNum>{0,1}</TransportContractRefNum>
  <SourceDocument type="">{0,unbounded}</SourceDocument>
  <AdditionalInfo>{0,1}</AdditionalInfo>
  <GTIN>{0,1}</GTIN>
  <DataSourceGLN>{0,1}</DataSourceGLN>
  <TargetMarketInfo>{0,1}</TargetMarketInfo>
</RefInfo>

Source

<xs:element minOccurs="0" name="RefInfo" type="RefInfoRecord"/>

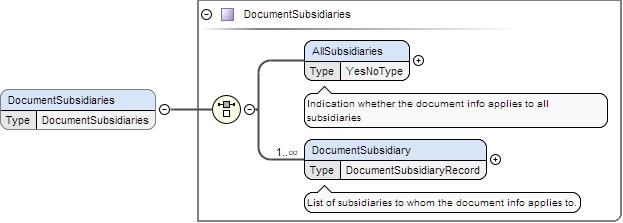

Element DocumentInfo / DocumentSubsidiaries

Namespace

No namespace

Diagram

Type

DocumentSubsidiaries

Properties

content	complex
minOccurs	0

Model

AllSubsidiaries | DocumentSubsidiary+

Children

AllSubsidiaries, DocumentSubsidiary

Instance

<DocumentSubsidiaries>
  <AllSubsidiaries>{1,1}</AllSubsidiaries>
  <DocumentSubsidiary>{1,unbounded}</DocumentSubsidiary>
</DocumentSubsidiaries>

Source

<xs:element minOccurs="0" name="DocumentSubsidiaries" type="DocumentSubsidiaries"/>

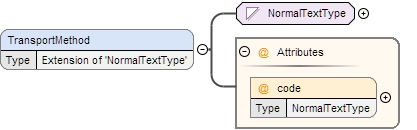

Element DocumentInfo / TransportMethod

Namespace

No namespace

Diagram

Type

extension of NormalTextType

Type hierarchy

xs:string
- NormalTextType

Properties

content	complex
minOccurs	0

Attributes

QName	Type	Use
code	NormalTextType	optional

Source

<xs:element minOccurs="0" name="TransportMethod">
  <xs:complexType>
    <!-- 3.1.13: ADDED attribute-->
    <xs:simpleContent>
      <xs:extension base="NormalTextType">
        <xs:attribute name="code" type="NormalTextType" use="optional"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

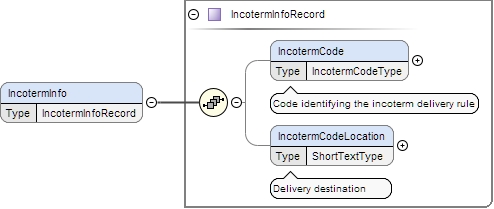

Element DocumentInfo / IncotermInfo

Namespace

No namespace

Diagram

Type

IncotermInfoRecord

Properties

content	complex
minOccurs	0

Model

IncotermCode{0,1} , IncotermCodeLocation{0,1}

Children

IncotermCode, IncotermCodeLocation

Instance

<IncotermInfo>
  <IncotermCode>{0,1}</IncotermCode>
  <IncotermCodeLocation>{0,1}</IncotermCodeLocation>
</IncotermInfo>

Source

<xs:element minOccurs="0" name="IncotermInfo" type="IncotermInfoRecord"/>

Element DocumentInfo / TransportRoute

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="TransportRoute" type="ShortTextType"/>

Element DocumentInfo / DespatchSequence

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="DespatchSequence" type="ShortTextType"/>

Element DocumentInfo / ReasonCode

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="ReasonCode" type="ShortTextType"/>

Element DocumentInfo / ReasonText

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="ReasonText" type="NormalTextType"/>

Element DocumentInfo / CreatedBy

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="CreatedBy" type="NormalTextType"/>

Element DocumentInfo / CreatedByContact

Namespace

No namespace

Diagram

Type

ContactDataRecord

Properties

content	complex
minOccurs	0

Model

ContactFirstName{0,1} , ContactLastName{0,1} , ContactPersonCode{0,1} , PhoneNum{0,1} , FaxNum{0,1} , MobileNum{0,1} , URL{0,1} , ContactInfo* , EmailAddress{0,1} , LegalAddress{0,1} , MailAddress{0,1} , ActualAddress{0,1} , FreeAddress{0,1}

Children

ActualAddress, ContactFirstName, ContactInfo, ContactLastName, ContactPersonCode, EmailAddress, FaxNum, FreeAddress, LegalAddress, MailAddress, MobileNum, PhoneNum, URL

Instance

<CreatedByContact>
  <ContactFirstName>{0,1}</ContactFirstName>
  <ContactLastName>{0,1}</ContactLastName>
  <ContactPersonCode>{0,1}</ContactPersonCode>
  <PhoneNum>{0,1}</PhoneNum>
  <FaxNum>{0,1}</FaxNum>
  <MobileNum>{0,1}</MobileNum>
  <URL>{0,1}</URL>
  <ContactInfo extensionId="" lang="">{0,unbounded}</ContactInfo>
  <EmailAddress>{0,1}</EmailAddress>
  <LegalAddress>{0,1}</LegalAddress>
  <MailAddress>{0,1}</MailAddress>
  <ActualAddress>{0,1}</ActualAddress>
  <FreeAddress>{0,1}</FreeAddress>
</CreatedByContact>

Source

<xs:element minOccurs="0" name="CreatedByContact" type="ContactDataRecord"/>

Element DocumentInfo / Attachments

Namespace

No namespace

Diagram

Type

AttachmentRecord

Properties

content	complex
minOccurs	0

Model

File+

Children

File

Instance

<Attachments>
  <File fileID="">{1,unbounded}</File>
</Attachments>

Source

<xs:element minOccurs="0" name="Attachments" type="AttachmentRecord"/>

Element DocumentInfo / DocumentGUID

Namespace

No namespace

Diagram

Type

GUIDType

Properties

content	simple
minOccurs	0

Facets

length	36
pattern	\{?[a-fA-F\d]{8}-[a-fA-F\d]{4}-[a-fA-F\d]{4}-[a-fA-F\d]{4}-[a-fA-F\d]{12}\}?

Source

<xs:element minOccurs="0" name="DocumentGUID" type="GUIDType"/>

Element DocumentInfo / DocumentUID

Namespace

No namespace

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="DocumentUID" type="NormalTextType"/>

Element DocumentInfo / DocumentERPID

Namespace

No namespace

Annotations

Document's ID in ERP

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="DocumentERPID" type="NormalTextType">
  <xs:annotation>
    <xs:documentation>Document's ID in ERP</xs:documentation>
  </xs:annotation>
</xs:element>

Element DocumentInfo / DocumentTelemaID

Namespace

No namespace

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="DocumentTelemaID" type="ShortTextType"/>

Element DocumentInfo / DocumentProcessingTypes

Namespace

No namespace

Diagram

Type

DocumentProcessingTypes

Properties

content	complex
minOccurs	0

Model

DocumentProcessingTypeCode+

Children

DocumentProcessingTypeCode

Instance

<DocumentProcessingTypes>
  <DocumentProcessingTypeCode>{1,unbounded}</DocumentProcessingTypeCode>
</DocumentProcessingTypes>

Source

<xs:element minOccurs="0" name="DocumentProcessingTypes" type="DocumentProcessingTypes"/>

Element DocumentInfo / MatchReferenceType

Namespace

No namespace

Annotations

Indication how the document is matched and needs to be processed in the data-receiver's ERP, for example ENTREC document can be matched with order or receipt

Diagram

Type

ShortTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

Source

<xs:element minOccurs="0" name="MatchReferenceType" type="ShortTextType">
  <xs:annotation>
    <xs:documentation>Indication how the document is matched and needs to be processed in the data-receiver's ERP, for example ENTREC document can be matched with order or receipt</xs:documentation>
  </xs:annotation>
</xs:element>

Element DocumentInfo / BusinessProcessType

Namespace

No namespace

Annotations

UBL Invoice business process type

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="BusinessProcessType" type="NormalTextType">
  <xs:annotation>
    <xs:documentation>UBL Invoice business process type</xs:documentation>
  </xs:annotation>
</xs:element>

Element DocumentInfo / CustomizationID

Namespace

No namespace

Annotations

Identification of the specification containing the total set of rules for UBL Invoice

Diagram

Type

NormalTextType

Properties

content	simple
minOccurs	0

Facets

maxLength

100

Source

<xs:element minOccurs="0" name="CustomizationID" type="NormalTextType">
  <xs:annotation>
    <xs:documentation>Identification of the specification containing the total set of rules for UBL Invoice</xs:documentation>
  </xs:annotation>
</xs:element>

Attribute DocumentInfo / PaymentMethod / @code

Namespace

No namespace

Type

NormalTextType

Properties

use	optional

Facets

maxLength

100

Used by

Element

DocumentInfo/PaymentMethod

Source

<xs:attribute name="code" type="NormalTextType" use="optional"/>

Attribute DocumentInfo / TransportMethod / @code

Namespace

No namespace

Type

NormalTextType

Properties

use	optional

Facets

maxLength

100

Used by

Element

DocumentInfo/TransportMethod

Source

<xs:attribute name="code" type="NormalTextType" use="optional"/>
