Schema documentation for component File

Showing:

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element AttachmentRecord / File

Namespace

No namespace

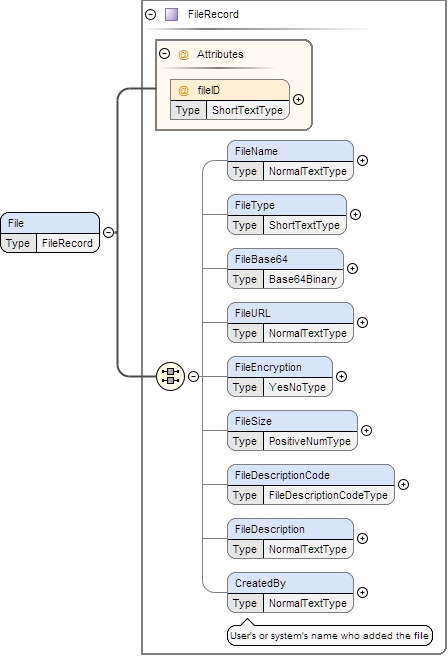

Diagram

Type

FileRecord

Properties

content	complex
maxOccurs	unbounded

Model

ALL(FileName{0,1} FileType{0,1} FileBase64{0,1} FileURL{0,1} FileEncryption{0,1} FileSize{0,1} FileDescriptionCode{0,1} FileDescription{0,1} CreatedBy{0,1})

Children

CreatedBy, FileBase64, FileDescription, FileDescriptionCode, FileEncryption, FileName, FileSize, FileType, FileURL

Instance

<File fileID="">
  <FileName>{0,1}</FileName>
  <FileType>{0,1}</FileType>
  <FileBase64>{0,1}</FileBase64>
  <FileURL>{0,1}</FileURL>
  <FileEncryption>{0,1}</FileEncryption>
  <FileSize>{0,1}</FileSize>
  <FileDescriptionCode>{0,1}</FileDescriptionCode>
  <FileDescription>{0,1}</FileDescription>
  <CreatedBy>{0,1}</CreatedBy>
</File>

Attributes

QName	Type	Use
fileID	ShortTextType	optional

Source

<xs:element maxOccurs="unbounded" name="File" type="FileRecord"/>

Complex Type AttachmentRecord

Namespace

No namespace

Diagram

Used by

Elements

DocumentInfo/Attachments, ItemEntry/Attachments

Model

File+

Children

File

Source

<xs:complexType name="AttachmentRecord">
  <xs:sequence>
    <xs:element maxOccurs="unbounded" name="File" type="FileRecord"/>
  </xs:sequence>
</xs:complexType>
